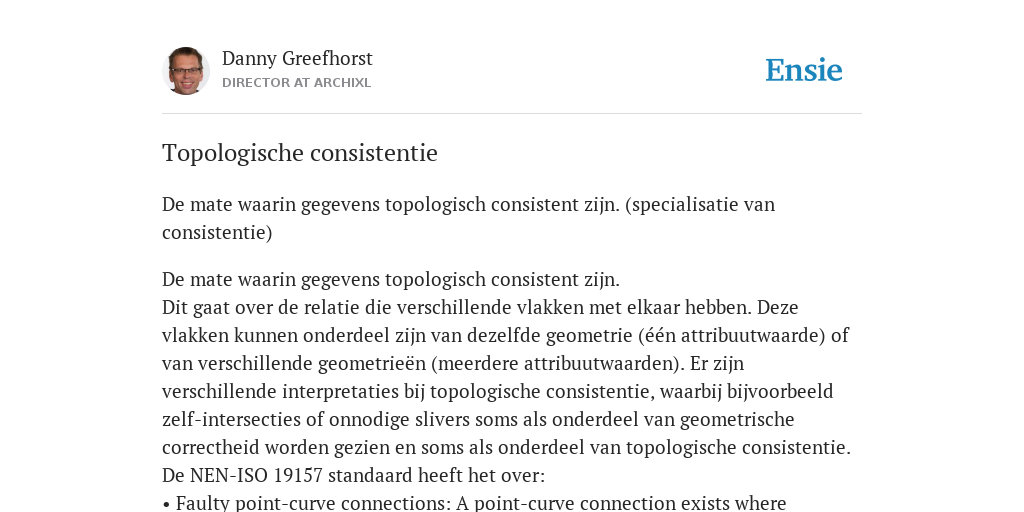

Topologische consistentie

betekenis & definitie

De mate waarin gegevens topologisch consistent zijn. (specialisatie van consistentie)

De mate waarin gegevens topologisch consistent zijn.
Dit gaat over de relatie die verschillende vlakken met elkaar hebben. Deze vlakken kunnen onderdeel zijn van dezelfde geometrie (één attribuutwaarde) of van verschillende geometrieën (meerdere attribuutwaarden). Er zijn verschillende interpretaties bij topologische consistentie, waarbij bijvoorbeeld zelf-intersecties of onnodige slivers soms als onderdeel van geometrische correctheid worden gezien en soms als onderdeel van topologische consistentie. De NEN-ISO 19157 standaard heeft het over:
• Faulty point-curve connections: A point-curve connection exists where different curves touch. These curves have an intrinsic topological relationship that shall reflect the true constellation. If the point-curve connection contradicts the universe of discourse, the point-curve connection is faulty with respect to this data quality measure.
• Missing connections due to undershoots: Items in the data set, within the parameter tolerance, that are mismatched due to undershoots. Parameter is search distance from the end of a dangling line.
• Missing connections due to overshoots: Items in the data set, within the parameter tolerance, that are mismatched due to overshoots. Parameter is search tolerance of minimum allowable length in the data set.
• Invalid slivers: A sliver is an unintended area that occurs when adjacent surfaces are not digitized properly. The borders of the adjacent surfaces may unintentionally gap or overlap by small amounts to cause a topological error.
• Invalid self-intersect errors: Items in the data that illegally intersect with themselves.
• Invalid self-overlap errors: Items in the data that illegally self overlap.
